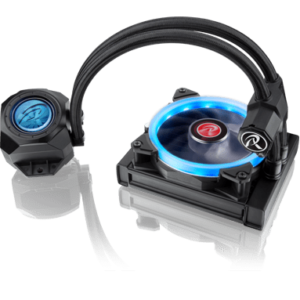

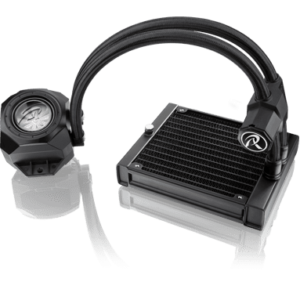

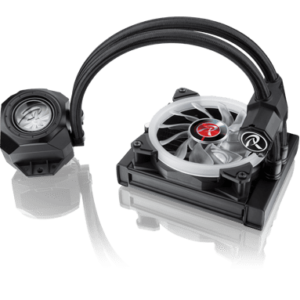

Raijintek ORCUS 120 RBW – 120mm Liquid AIO

$69.99

ORCUS 120 RBW

Availability: In stock

SKU: 14811180 Category:

Product Name ORCUS 120 RBW
Product Number 0R10B00102
Radiator Dimension [W×H×D] 152×120×27 mm
Weight [Block+Pump+Radiator] 710g
Thermal Resistance 0.11 °C/W
Liquid Capacity 115ml ±10%
Fan Q’ty 1 pcs
Tubing Dimension ID – 5mm / OD – 10.6mm
Material Copper Cold Plate / Alu. Radiator

PUMP
Dimension [W×D×H] 69.5×40×33 mm
Bearing type Ceramic Axis
Q-max 86 L/H
Pressure Head 1.4 Meter
Noise level 25 dBA [Max.]
Life Expectancy 50,000 hours
Speed 4500±10% R.P.M. at 12VDC
Rated Current 150mA
Voltage Rating 12 V
Power consumption 1.8 W

FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 6V
Speed 400~1800 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 35.8 CFM [Max.]
Air Pressure 1.16 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 28 dBA [Max.]
Connector 5V ADD header, PWM 4 pin header
Rated Current 0.12A±10%
Power consumption 1.44W±10%
LED Rated Current 0.69A [Max.]
LED Power consumption 8.28W [Max.]
Accessories ARGB-PWM control hub × 1 ; Remote Controller × 1 ; Connect cable × 1

APPLICATION
Intel® All Socket LGA 775/115x/1200/1366/201x/2066 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2 CPU

Weight 4 lbs
Dimensions 13 × 6 × 10 in
