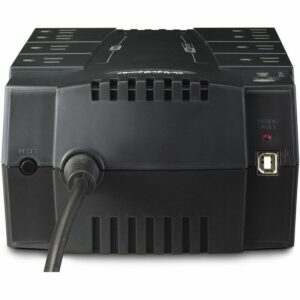

Manufacturer:CyberPower Systems, IncManufacturer Part Number:CP550SLGManufacturer Website Address:https://www.cyberpowersystems.com/Brand Name:CyberPowerProduct Series:Standby UPSProduct Model:CP550SLGProduct Name:CP550SLG Standby UPS SystemsMarketing Information:A compact UPS with standby topology, the CyberPower Standby CP550SLG provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the CP550SLG offers reliable power protection and battery backup. The CP550SLG comes with a three-year warranty and a $100,000 Connected Equipment Guarantee.
More from the ManufacturerProduct Type:Standby UPSTechnical Information
Plug/Connector Type:NEMA 5-15PReceptacle Type:NEMA 5-15RReceptacle Detail:8 x NEMA 5-15RNumber of Battery & Surge Outlets:4Number of Surge-only Outlets:4Dataline Protection:RJ-11Overload Protection:YesCord Length:5 ftTransfer Time:4 msEMI/RFI Noise Filter:YesEnergy Saving:GreenPower UPS™ High-Efficiency DesignApplication/Usage:Desktop Computer
Workstation
Home Theater
Electronic Equipment
Home Network
Router
Modem
VoIP DevicePower Description
Load Capacity (VA):550 VALoad Capacity (Watt):330 WInput Voltage:120 V ACInput Voltage Range:96 V AC – 140 V ACOutput Voltage:120 V ACInput Frequency:60 HzOutput Frequency:50 Hz
60 HzWaveform Type:Sine Wave
Simulated Sine WaveSurge Energy Rating:890 JCircuit Breaker:YesOutput Power Factor:0.6Management
Alarm:Battery ModeControls/Indicators
Status Indicators:LED Indicators: Power OnInterfaces/Ports
Serial Port:NoUSB:YesUSB (HID Compliant) Port:YesBattery Information
Number of Batteries:1Battery Characteristics:SealedBattery Chemistry:Lead AcidBattery Size:12VBattery Capacity:5500 mAhBackup/Run Time (Full Load):2 MinuteBackup/Run Time (Half Load):8 MinuteTypical Battery Recharge Time:8 HourReplaceable Battery:NoEnvironmental Conditions
Minimum Operating Temperature:32°F (0°C)Maximum Operating Temperature:104°F (40°C)Storage Temperature:5°F (-15°C) – 113°F (45°C)Operating Humidity:0% – 90%Physical Characteristics
Color Family:BlackProduct Color:BlackHeight:5.8"Width:9.8"Depth:3.3"Form Factor:CompactWeight (Approximate):7.50 lbMiscellaneous
Package Contents:Standby CP550SLG 550 VA Desktop UPS
User Manual
USB A+B Type Cable
Warranty Registration CardAdditional Information:Energy Saving : GreenPower UPS™ High-Efficiency
UPS Topology : Standby
Battery Quantity : 1
Battery Size : 12 V / 5.5 Ah
Battery Type : Sealed Lead-Acid Battery
Runtime at Full Load : 2 min
Runtime at Half Load : 8 min
Typical Recharge Time : 8 Hours
User Replaceable Battery : No
Physical Dimensions – (WxHxD) (cm) : 24.89 x 14.73 x 8.38 (cm)
Physical Dimensions – (WxHxD) (in) : 9.8 x 5.8 x 3.3 (in)
Physical Dimensions – (WxHxD) (mm) : 249 x 147 x 84 (mm)
Weight (kg) : 3.4
Weight (lb) : 7.5
Shipping Dimensions – (WxHxD) (cm) : 13.36 x 21.21 x 37.16 (cm)
Shipping – Dimensions (WxHxD, in) : 5.26 x 8.35 x 14.63 (in)
Shipping – Dimensions (WxHxD, mm) : 133.6 x 212.09 x 371.6 (mm)
Shipping – Weight (kg) : 3.58
Shipping – Weight (lb) : 7.9
Circuit Breaker : 10 A
Cord Length : 5 ft (1.5 m)
Input Frequency Range : 47 Hz – 63 Hz
Input Plug Type : NEMA 5-15P
Nominal Input Voltage : 120 VAC
Plug Style : Right Angle – 45° Offset
On AC WaveForm : Sine Wave
On Battery Frequency : 50/60 Hz ± 1%
On Battery Voltage : 120 VAC ± 5%
On Battery Waveform : Simulated Sine Wave
Outlets – Battery & Surge Protected : 4
Outlets – Surge-Only Protected : 4
Outlets – Total : 8
Outlets – Widely Spaced : 4
Outlet Type COMPUTED : 8 – NEMA 5-15R
Output Power Factor : 0.6
Overload Protection : Internal Circuitry Limiting
Typical Transfer Time : 4 ms
USB Charge Port : No
VA : 550 VA
Watts : 330 W
EMI/RFI Filtration COMPUTED : Yes
Phone Protection RJ11 : 1-In / 2-Out
Surge Suppression (Joules) : 890 J
EMI/RFI Filtration COMPUTED : Yes
Phone Protection RJ11 : 1-In / 2-Out
Surge Suppression (Joules) : 890 J
Audible Alarms : Battery Mode
HID Compliant USB Port : Yes
LED Indicators : Power On
Management Cable : USB Cable
Software (Free Download) : PowerPanel® Personal
Color : Black
Form Factor : Compact
Keyhole Mounting Slots : Yes
Material of Construction : Plastic
Operating Relative Humidity : 0 – 90 % (non-condensing)
Operating Temperature : 32 – 104 °F (0 – 40 °C)
Storage Temperature : 5 – 113 °F (-15 – 45 °C)
Environmental : RoHS Compliant
Safety : UL1778
CEG Amount : $100000
Connected Equipment Guarantee : Lifetime
Extended Warranty Option : WEXT5YR-U1A
Product Warranty : 3 Year Limited WarrantyCertifications & Standards:UL1778Software Included:PowerPanel Personal Edition UPS Management SoftwareEnergy Star:NoEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)Warranty
Limited Warranty:3 YearDirectly Connected Equipment Guarantee:$100000 Lifetime
