SPECIFICATION
Graphics Engine AXRX 6750 XT 12GBD6-3DH
Video Memory 12GB GDDR6
Stream Processor 2560 Units
Engine Clock(OC) up to 2495MHz(Game)¹
up to 2600MHz(Boost)²
Memory Speed 18.0 Gbps
Memory Interface 192-bit
DirectX® Support 12
Bus Standard PCIE 4.0 x16

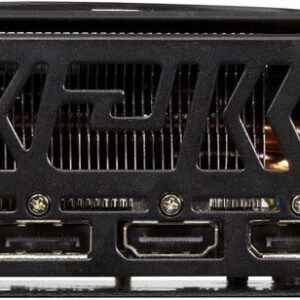

Standard Display Connectors 1 x HDMI 2.1 , 3 x DisplayPort 1.4
Customized Specifications
Feature Support
OpenGL Support
CrossFireX™ Technology support (DirectX® 12/Vulkan™)
AMD Stream Technology Support
AMD Eyefinity Technology Support
For more infromation, please refer AMD Website.
Maximum Resolution
VGA
DVI
DisplayPort 7680×4320
HDMI 7680×4320
Power Specs + Board Dimensions
Board Dimensions 230mm*112mm*45mm 243mm*124mm*45mm(with bracket)
Minimum System Power requirement (W) 650W
Extension Power Connector One 6-Pin and One 8-Pin PCI Express Power connectors
