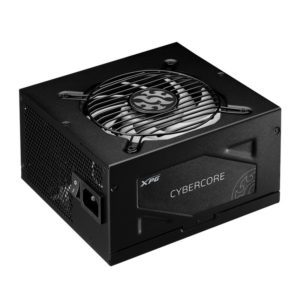

XPG CYBERCORE PLATINUM Series exemplifies XPG’s ambition and dedication to the PC enthusiast community by expanding the line of excellent-quality PSUs with a new tier of Platinum products. Our top-of-the-line XPG VENTO PRO 120 PWM Fan by Nidec is selected to boost CYBERCORE’s cooling solution while helping to keep a compact form factor. It’s a new PSU milestone for XPG, and represents XPG’s determination to satisfy higher wattage requirements.
XPG CYBERCORE series is certified by the highest Cybenetics quality standards. All configurations have achieved ETA PLATINUM grade while still maintaining LAMBDA Standard++ rating for noise even with our most compact form factor.

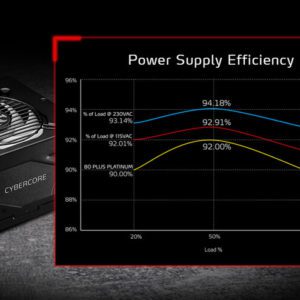

XPG CYBERCORE’s efficiency achieves 92.91% 115VAC at 50% load (temperature at 25℃), delivering exemplary performance even by 80 PLUS PLATINUM standards.

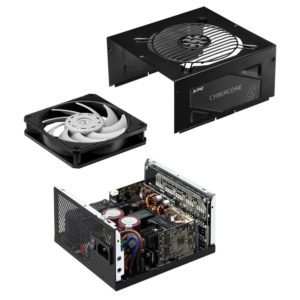

XPG CYBERCORE is the latest XPG and Nidec collaboration, utilizing our highest tier XPG VENTO PRO 120 PWM Fan for its high cooling efficiency, featuring Dual Bearing and patented technology to maintain an excellent balance between noise and life expectancy (60,000 hours at 60℃).

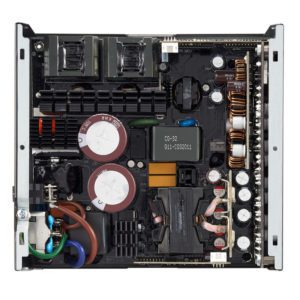

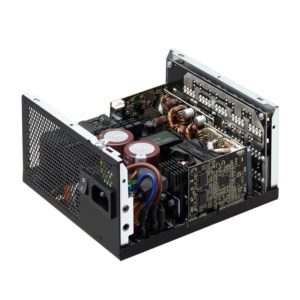

XPG CYBERCORE PLATINUM Series utilizes all-Japanese high quality 105℃-grade capacitors to ensure power delivery is stable, consistent and efficient.
XPG CYBERCORE PLATINUM PSU’s power delivery efficiency is optimized via Digital Control Panel. It controls, commands and optimizes power delivery’s efficiency and stability, ensuring the process is stable but also accurate, and such accuracy protects other components during the process of the power delivery

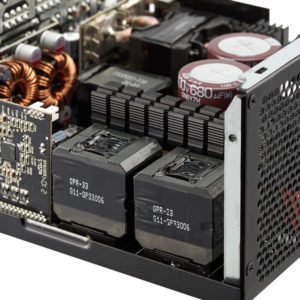

DC-to-DC Circuit design minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to components’s life expectancy. Ultimately, XPG CYBERCORE can achieve smooth and stable power delivery.

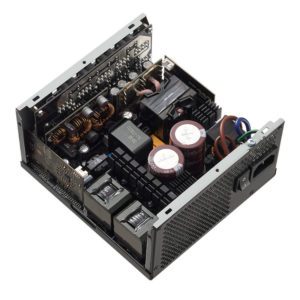

XPG CYBERCORE Interleaved PFC (Power Factor Correction) regulates and stabilizes voltage, and distributes power at its optimal efficiency, leveraging 2 chokes that alternate each other, reducing power loss during conversion. XPG CYBERCORE’s PFC is Active, meaning it provides more efficient power efficiency, automatically correcting AC input voltage (full range).
XPG CYBERCORE power supply unit is further protected by 8 industrial-level protections such as OVP, OPP, SCP, OCP, UPV, OTP, NLO and SIP. And these protections are further backed up with 10- Year Warranty
SPECIFICATIONS:
80 PLUS Rating: PLATINUM
Cybenetics Rating: ETA PLATINUM / LAMBDA STANDARD++
ATX Version: Intel ATX 12V v2.52
Protections: OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification: CE / CB/ FCC(IC) / TUV / cTUVus / TUV S-Mark / NOM / BSMI / UKCA / EAC
PFC: 0.99

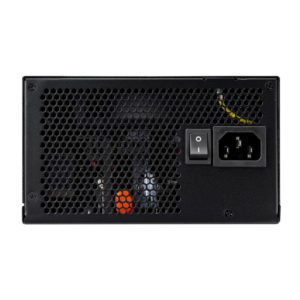

Input Voltage: 100V-240V
Input Current: 15A
Input Frequency: 50Hz-60Hz
Operating Temperature: 50℃
Warranty: 10 Years
Fan Specifications:
Fan Size: 12cm
Fan Bearing: Dual Ball Bearing
Fan Speed: 2,150 RPM
MTBF: >120,000 hours @ 25 DEG C

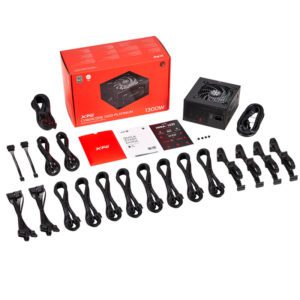

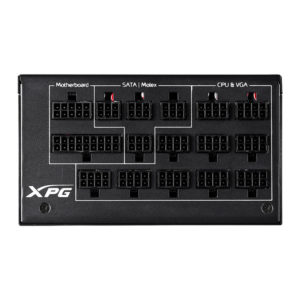

Connection Counts:
ATX 24 Pin Connector: 1
EPS 8 (4+4) Pin Connector: 2
PCI-E 6+2 Pin Connector: 10
SATA Connector: 16
MOLEX 4 Pin Connector: 8
FLOPPY 4 Pin Connector: 2
